High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Name: High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcshour
Brand: Yihan
Price: 950.00 USD

Wholesale High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour from china suppliers

Place of Origin : Guangdong, China

Brand Name : Yihan

Model Number : YH-PX380

Usage : Cutting stripping sub-line machine

Name : Cutting stripping sub-line machine

Suitable wire : Flat cable,winding displacement,double lines,speaker cable

Max width range : Flat cable branching wire 12p

Stripping length : Head 0-25mm Tail 0-15mm

Power supply : AC 220V 50/60Hz

Speed : 2000 - 7000pcs/hour

Size : 500*470*400mm

Weight : 40kg

Warranty : 12 Months

Certification : CE Certificate

Packaging Details : Wooden package

Price : $950.00/sets 1-2 sets

MOQ : 1 set

Contact Now

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Automatic computer cable line cutting and stripping machine

Features Introduction:

The machine uses the latest 32 intelligent control system, Chinese and English switch LCD, button operation, can store hundreds of pieces of information, called at any time, fast efficient, convenient and quick.Subline mold parts are used by the US imported from bottom to top plugbreaking formula subline, thin blade, sharp, Cable tidy deformation, more convenient crimp terminal.
This is a new multifunctional automatic wire cutting machine that developed by our company , automatic sub wire, wire cutting, stripping, semistripping, full strip once completed, compatible with the general wire cutting machine function, not only saves labor and time, but also improve productivity.Different types of wires can be arbitrary processing , without moving the subline mode can be computer adjusted thread and wire tail subline length, models supporting plugbreaking ceremony for the pneumatic sub-line mode.

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Product Description

Type	YH-PX380
Size	760mm450mm360mm
Weight	45kg
Display method	Chinese or English interface displa
Power supply	AC220/50Hz
Capacity	420W
Cutting length	1mm---99999mm
Cutting Tolerance	Modifiable
Peeling length	1.0mm-999.9mm(According to the wire)
Applicable wire core area	32#-14#,cable 2P-13P
Applicable wire	Cable, electronic wire, double to combine wire, parallel wires, RVV wire, etc.
Tool Material	Tungsten steel / white steel
Stripping speed:	Fast
Cable outer diameter	Adjustable
Stripping quality	Excellent
Decimal precision	Yes
Drive mode	Four simultaneously drive
Stripping pressure adjustment	Adjustable
Speed adjustment	0-9
Stripping Mode	long wire/ short wire / semi-stripping / multi-stage stripping / cable/trunking

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

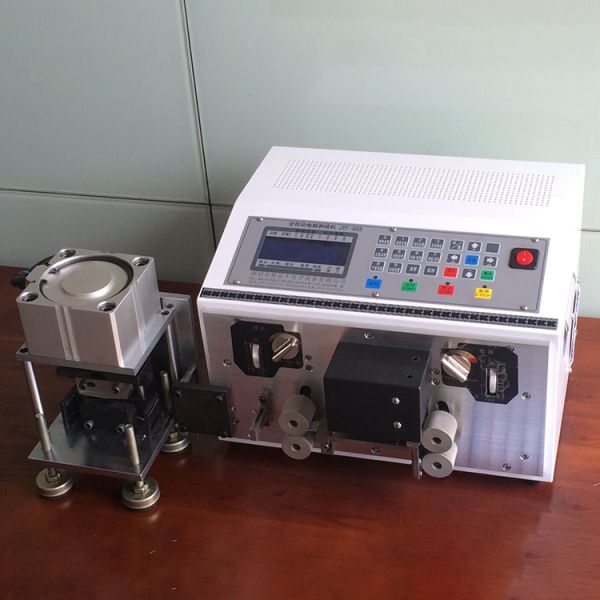

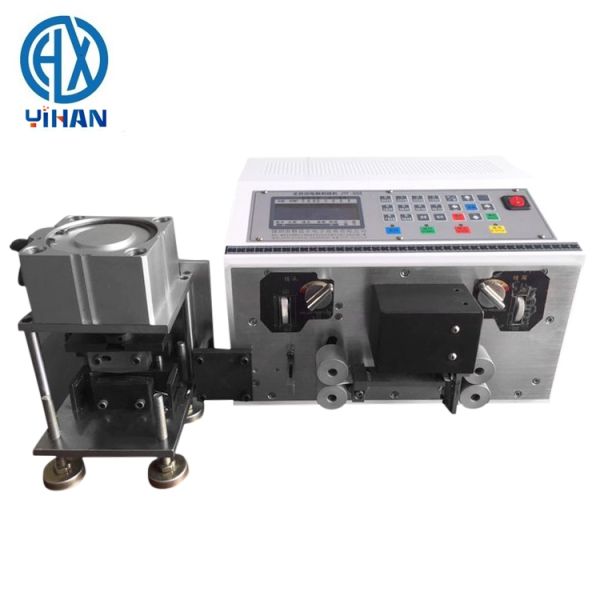

Product show

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Company profile

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Advantages

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Certification

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Packaging delivery

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Problem solving

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour Images
